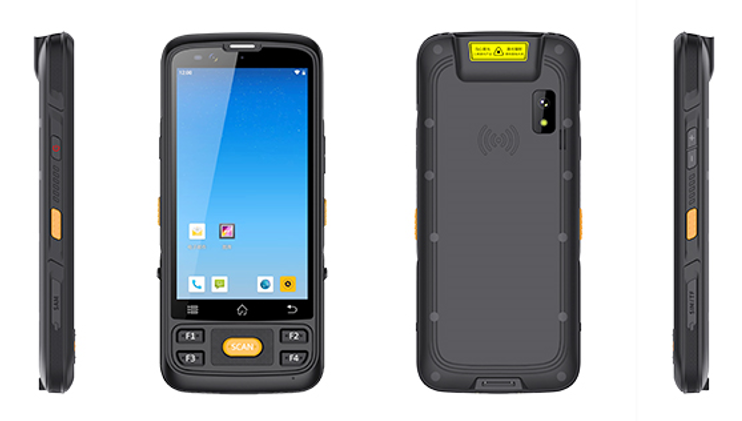

The Industrial Android NFC Barcode Terminal with Optional Thermometer is a rugged handheld data collection terminal designed for warehouse operations, retail, access control, public transport, field inspection and other mobile identification applications. Running Android 12 on an MTK6762 octa-core processor, the device features a 5.72-inch full-touch display, a compact 178 × 83 × 17 mm housing and an approximate weight of 242 g. A built-in 13.56 MHz NFC function supports ISO/IEC 14443A compatible cards and tags for short-range identification.
Optional configurations include 1D/2D barcode scanning, LF/HF RFID modules and a non-contact infrared temperature measurement module. The infrared thermometer supports a typical measurement distance of 1-3 cm, an accuracy of ±0.2°C, a human-body measurement range of 32°C to 42.9°C, and a response time of ≤1 second. Optional RFID configurations can support 125/134.2 kHz LF and 13.56 MHz HF identification depending on project requirements. The terminal is powered by a 4000mAh lithium-polymer battery and supports 4G LTE, dual-band Wi-Fi and Bluetooth 4.0 BLE for mobile communication and data collection. Android SDK, API documentation, demo applications and test tools are available on request for secondary development and project integration.
