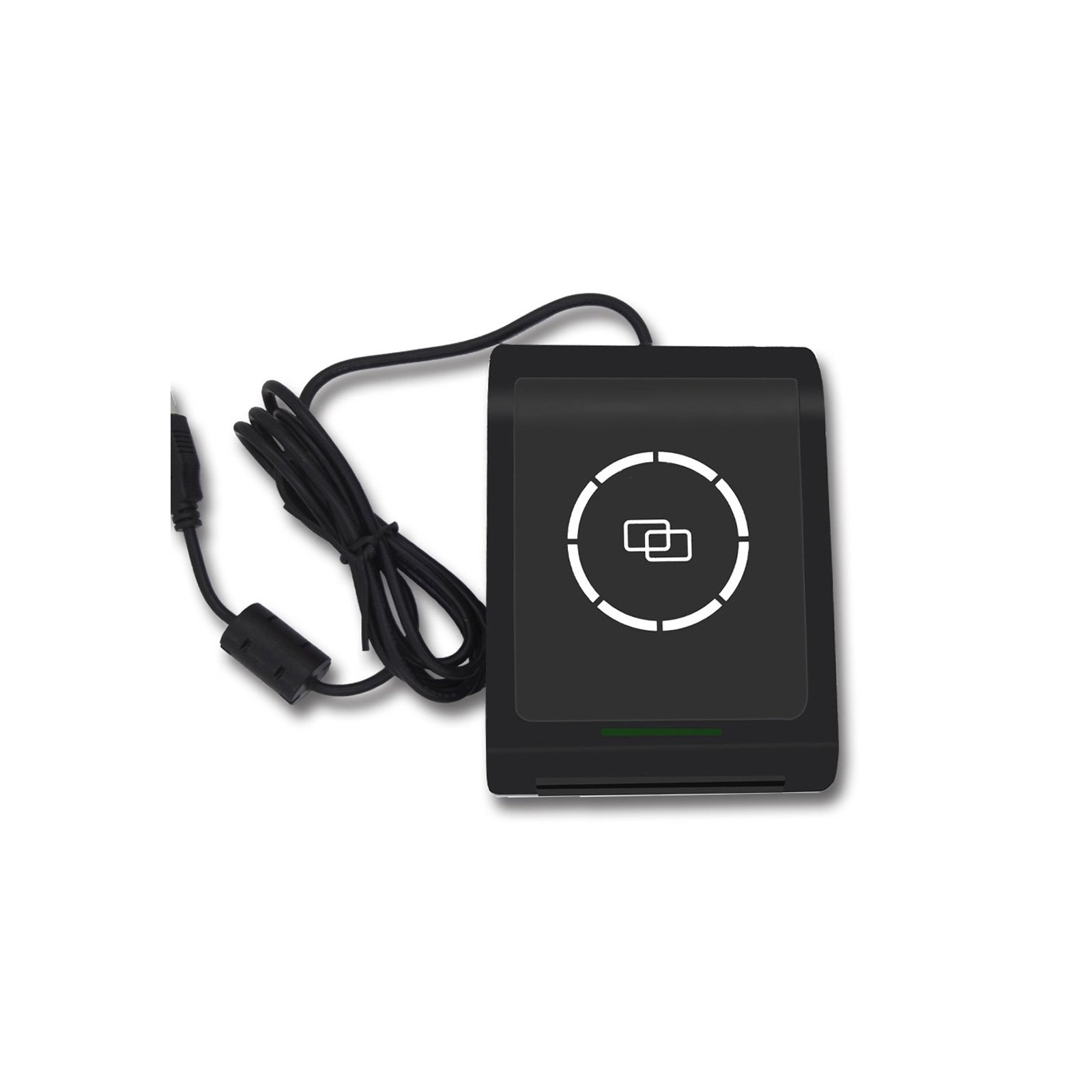

The 13.56MHz Multi-Protocol RFID Reader S9-CU-00-00 is a USB desktop contactless card reader designed for access control, membership systems, card enrollment, identity verification, library and asset identification, and other applications requiring compatibility with multiple HF RFID technologies. Operating at 13.56 MHz, the reader supports ISO/IEC 14443A, ISO/IEC 14443B and ISO/IEC 15693, allowing different contactless card families to be handled through a single desktop device.
Compatible card types include common MIFARE products such as S50, S70, Ultralight, NTAG21x, DESFire, Pro and Plus, together with FM1208 contactless CPU cards, AT88RF020 and ICODE2. The reader also supports UID-based identification applications, including compatible second-generation ID UID reading. Typical contactless reading distance is up to approximately 5 cm, depending on card type, protocol and operating conditions.
The reader connects through USB and operates from a 5V USB supply. SDK, dynamic libraries, example code, demo software, communication examples and development documentation are available for host-system integration and secondary development. Card-type adaptation, UID output formatting, firmware customization and project-specific multi-protocol HF integration can also be discussed according to application requirements.
