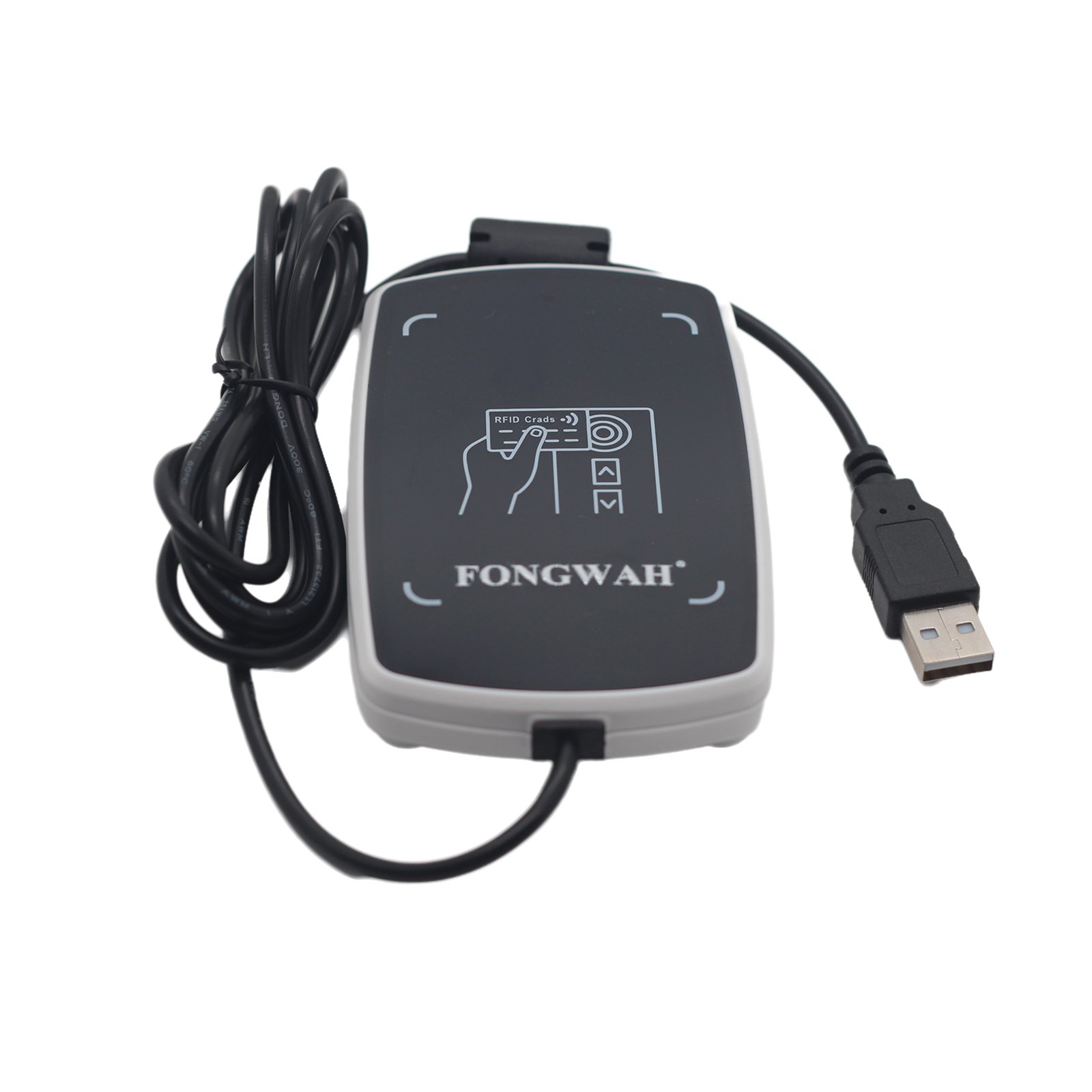

Dual Frequency RFID Reader S7-EU-00-02

Reading Distance
up to 5cm
Dual Frequency RFID Reader S7-EU-00-02

Technical Specifications

Frequency
125khz: 125KHz (LF), 13.56mhz: 13.56MHz (HF)
Communication Interface
USB
Power Supply
5V USB
Supported Protocols
ISO/IEC 14443A/B
Support Card Type
S50/S70, DESFire, Pro, Ultralight/Ultralight-C, contactless CPU cards; 4100/4200 ID cards and key fobs
Dimensions
110*67*17mm
Weight
180g

Detailed Description

This model is a versatile UID Scanner capable of reading both 13.56MHz (High Frequency) and 125KHz (Low Frequency) cards. This device supports multiple protocols, including ISO14443 Type A/B, allowing it to read the UID numbers of contactless cards like M1, Desfire, and Ultralight, as well as proximity cards and key fobs. Designed for simplicity, it features keyboard emulation, which instantly displays the card’s UID at the cursor position on your PC screen.

Perfect for applications needing fast, accurate identity and data query, this reader can be easily configured using a separate tool to change default settings. It is an ideal, cost-effective solution for various industries, including transportation, ID identity verification, access control, memory query, print management, e-commerce, medical, and government administration. Please note that this device is a reader only and does not support writing data onto cards or tags.
