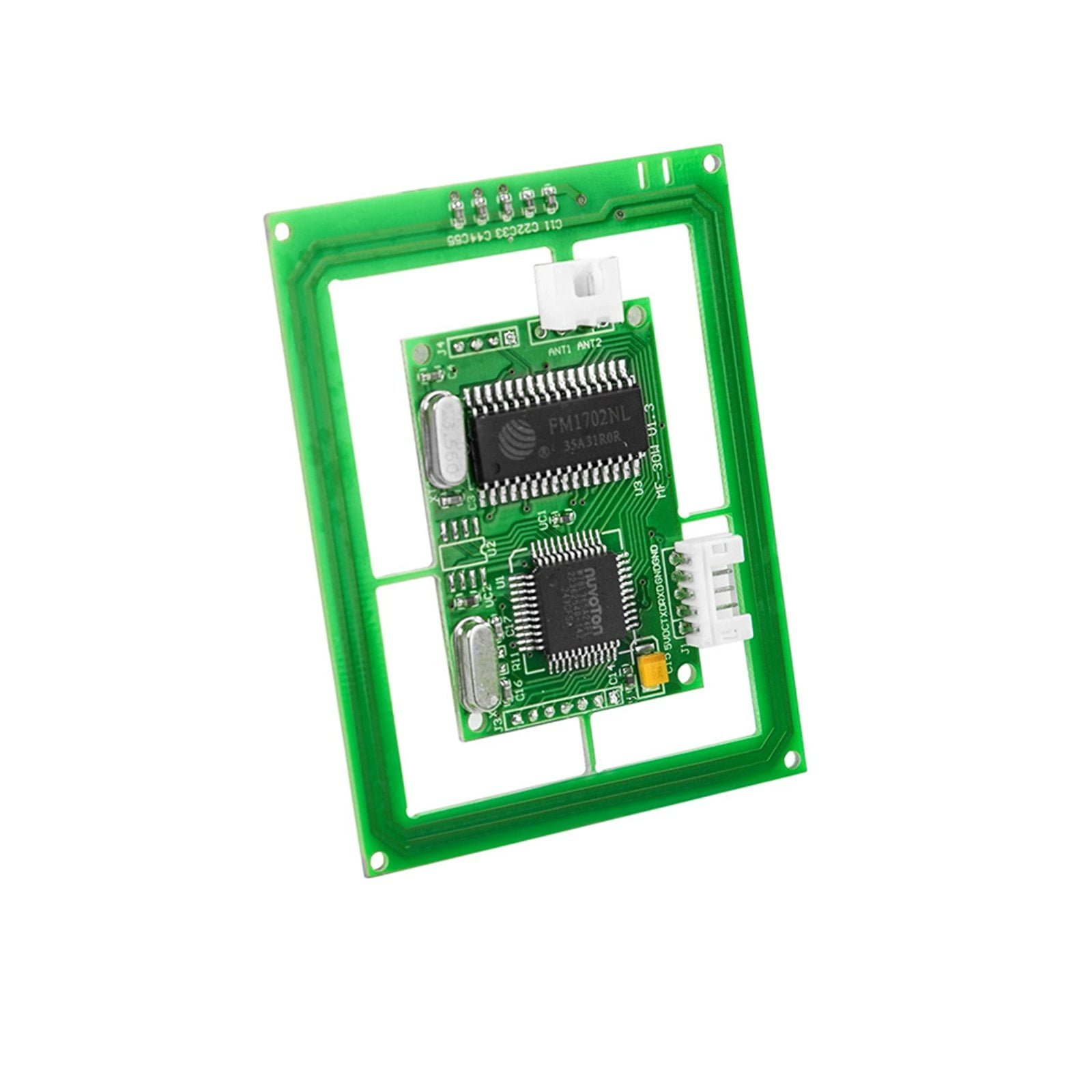

13.56MHz HF RFID Reader Module with TTL Interface

RFID Reader Module 13.56mhz: 13.56MHz (HF) TTL

Typical Read Range

Up to approx. 5 cm (card, antenna and installation dependent)

Typical Applications

Access Control / Smart Terminals / Vending & Payment Systems / Embedded Identification / Membership Systems / OEM Device Integration

Request a Quote WhatsApp

Developer Resources

Public SDK package for software integration and secondary development.

Get Unified SDK Package

Product Specifications

Technical Specifications

Core parameters for reader selection, integration planning and installation review.

RF & Reading

6 parameters

Reader Type

RFID Reader Module

Frequency

13.56mhz: 13.56MHz (HF)

Supported Protocols

ISO/IEC 14443A/B, NFC Forum

Antenna Configuration

Integrated HF Antenna / Separate Antenna Configuration Available for Custom Projects

Reading Distance

Up to approx. 5 cm (card, antenna and installation dependent)

Tag Read Performance

13.56 MHz HF card reading with up to approx. 5 cm typical read distance, depending on card type, antenna configuration and installation environment.

Connectivity & Integration

3 parameters

Communication Interface

TTL

Power Supply

5V DC

Supported Card / Tag Types

MIFARE S50 / S70 / Ultralight / DESFire / Pro / Plus / Compatible Contactless CPU Cards

Mechanical & Environment

4 parameters

Dimensions

73 × 55 × 13 mm

Weight

Approx. 20-40 g depending on configuration

Material & Housing

Bare PCB Reader Module / Embedded Installation

Customization Service

Communication interface adaptation / RS232, RS485 or USB configuration / ISO14443B or ISO15693 protocol support / Card-type adaptation / Antenna configuration / Module size customization / PSAM integration / SDK and firmware adaptation / Project-specific system integration

Detailed datasheets and compliance documents are available on request for project evaluation.

Request project documentation

Product Information

Product Overview

The 13.56MHz HF RFID Reader Module is a compact embedded contactless card reader designed for access control systems, smart terminals, vending and payment equipment, membership systems, identification devices and other OEM applications. Operating at 13.56 MHz, the standard configuration supports ISO/IEC 14443A compatible cards with a typical reading distance of up to approximately 5 cm, depending on the card, antenna configuration and installation environment. The module operates from a 5V DC power supply and uses TTL communication as the standard host interface for embedded integration.

The module supports common MIFARE-compatible cards including S50, S70, Ultralight, DESFire, Pro, Plus and compatible contactless CPU cards according to project configuration. Read/write SDK, demo programs, communication examples and development resources are available for MCU and host-system integration. For project-specific requirements, Fongwah can provide communication interface adaptation including RS232, RS485 and USB, additional protocol support such as ISO14443B and ISO15693, antenna configuration, module size customization, PSAM integration, firmware adaptation and other OEM integration services.

Selection Guide

Quick Selection Guide

A practical summary to help match this reader to the right application and installation conditions.

Best For

Access control systems, smart terminals, vending and payment equipment, membership systems, identification devices and OEM products requiring embedded 13.56 MHz HF card reading.

Choose This When

Choose this module when your product requires compact 13.56 MHz HF card reading, 5V DC operation, TTL host communication and SDK support for embedded system integration.

Not Ideal For

Not intended for long-range UHF RFID inventory, standalone outdoor installations or applications requiring a complete enclosed reader. Alternative interfaces and additional HF protocols should be configured according to project requirements.

Read Range & Installation

Typical reading distance is up to approximately 5 cm and depends on card type, antenna configuration, mounting position and surrounding materials. Keep the antenna area away from large metal surfaces and strong electromagnetic interference where possible.

Compatibility

Standard configuration supports 13.56 MHz ISO/IEC 14443A cards, including common MIFARE-compatible products. Additional card types, ISO14443B, ISO15693 and alternative communication interfaces can be configured according to project requirements.

OEM / ODM Support

Project-based configuration and product adaptation

SDK & Integration Support

Interfaces, protocols and software integration support

Factory Quality Control

Production testing and outgoing inspection

Global Project Support

Export support for international projects and partners
