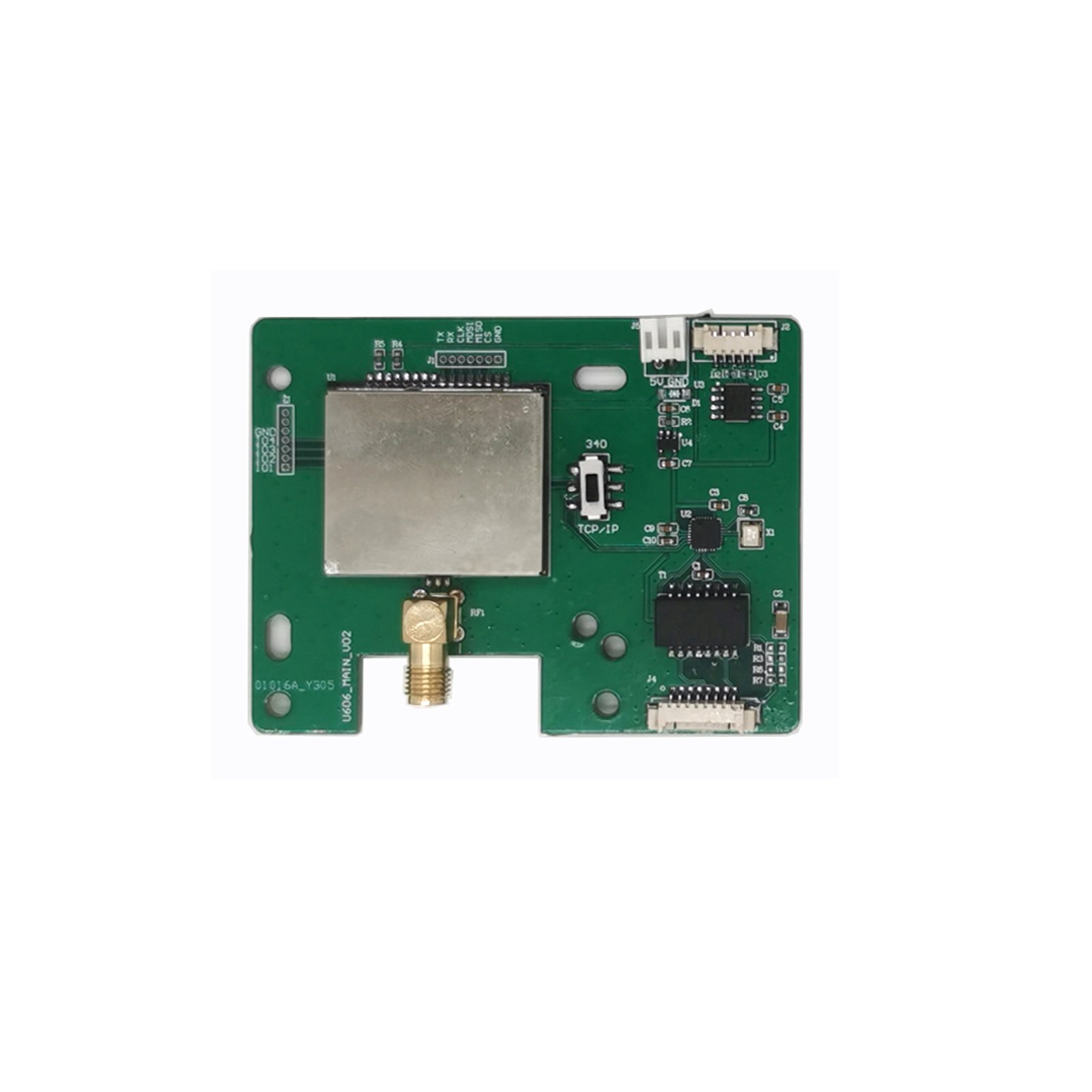

The 1-Port UHF RFID Reader Module U6-NF-01 is a compact embedded reader designed for smart cabinets, production line tracking, warehouse automation, asset management and other OEM RFID equipment. Supporting EPC Class 1 Gen 2 / ISO 18000-6C and GB/T 29768-2013, the module provides reliable multi-tag inventory through a single external 50 Ω SMA antenna port. It operates from a 5V DC power supply and is designed for integration into compact embedded systems.
RF output power is software adjustable from 3-30 dBm. Under suitable tag, antenna and environmental conditions, reading distance can reach up to approximately 8 m, while writing distance is typically up to approximately 10 cm. The reader supports anti-collision processing, RSSI reporting, a peak inventory speed of up to 500 tags per second, a 700-tag buffer at 96-bit EPC and receiver sensitivity down to -70 dBm. The module is specified for operation from -40°C to +70°C.
Standard host communication is provided through USB virtual serial, while RS232, HID and TCP/IP configurations can be supplied according to project requirements. SDK, interface libraries, demo programs, communication examples, user manuals and development resources are available for host-system integration and secondary development.
