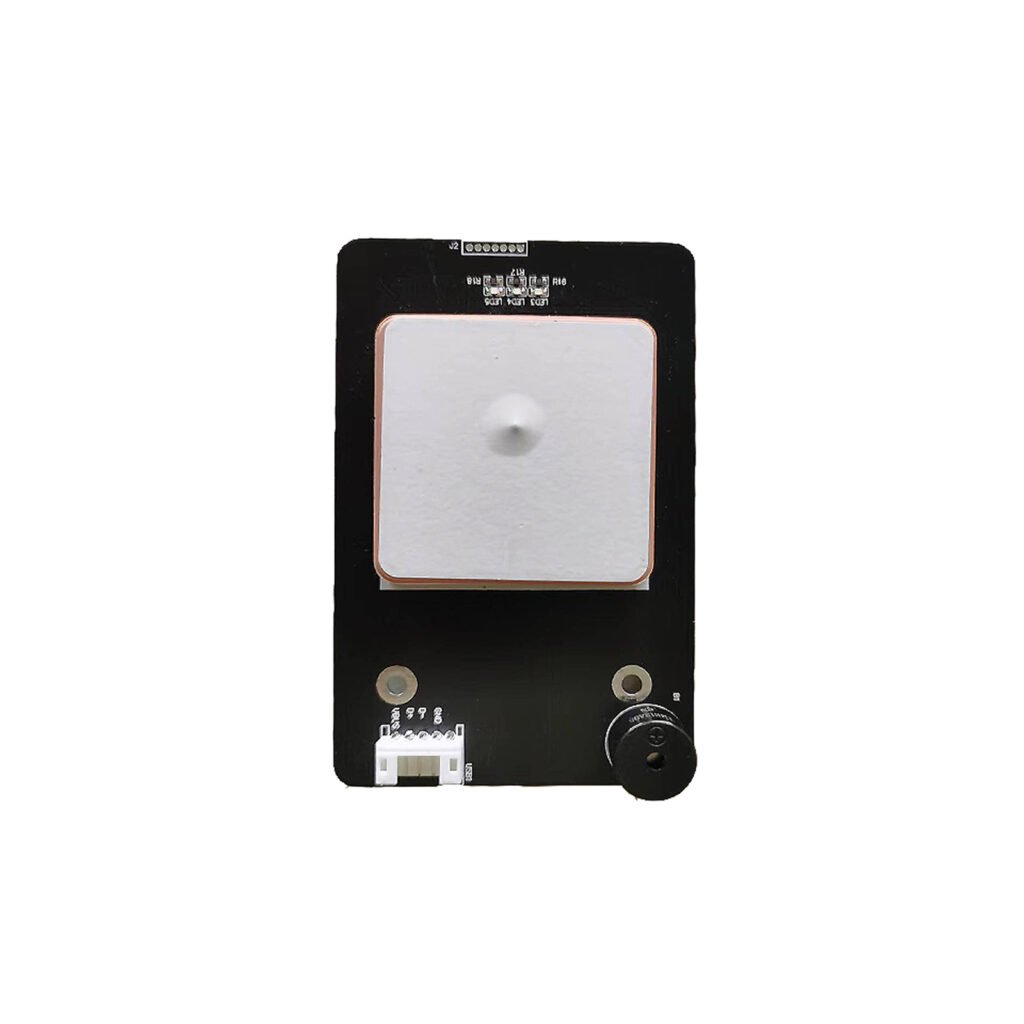

The UHF RFID Reader Module U6-CT-01 is a compact embedded reader designed for smart cabinets, production line tracking, asset management, access control and other OEM RFID equipment. Supporting EPC Class 1 Gen 2 / ISO 18000-6C and GB/T 29768-2013, the module provides multi-tag UHF identification for short- to medium-range embedded applications. It operates from a 3.7-5V DC supply and supports USB or TTL host communication, with additional cellular connectivity options available for project integration.
RF output power is software adjustable from 3-26 dBm. Under suitable tag, antenna and environmental conditions, read distance can reach up to approximately 1 m, while write distance is typically within 0-10 cm. The reader supports anti-collision processing, RSSI reporting, a peak inventory speed of up to 200 tags per second, a 700-tag buffer at 96-bit EPC and receiver sensitivity down to -70 dBm. Chip temperature monitoring and SM7 security algorithm support are also provided.
USB, TTL and project-specific 4G or 5G connectivity can be configured according to integration requirements. SDK resources include dynamic libraries, example code, demo software, user manuals and operating documentation for secondary development. RF parameters, security interfaces, firmware and communication configuration can also be adapted for OEM projects.
