20+ Years RFID Manufacturing Experience

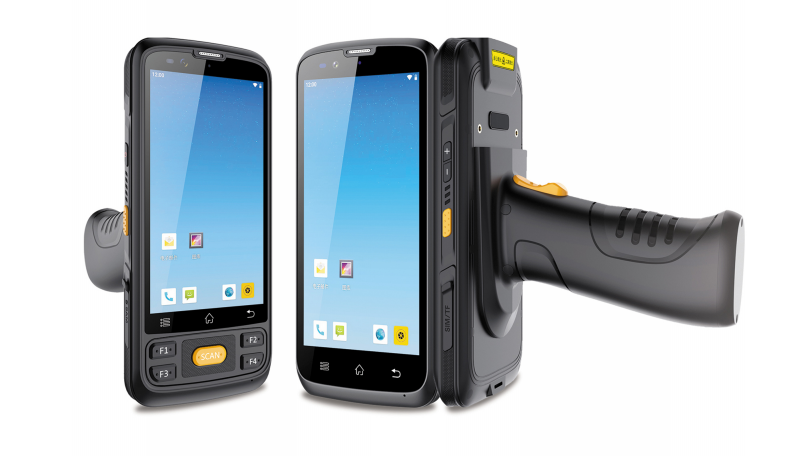

Industrial Android RFID & Barcode Pistol-Grip Handheld Terminal

Handheld RFID Terminal 125khz: 125KHz (LF) WiFi Bluetooth

Typical Read Range

Built-in NFC: 1-3 cm / Optional LF RFID: 3-5 cm / Optional HF RFID: 3-5 cm

Typical Applications

Warehouse Scanning / Express Logistics / Manufacturing Traceability / Asset Management / Retail Inventory / Identity Verification / Field Data Collection

Request a Quote WhatsApp

Product Specifications

Technical Specifications

Core parameters for reader selection, integration planning and installation review.

RF & Reading

6 parameters

Reader Type

Handheld RFID Terminal

Frequency

125khz: 125KHz (LF), 13.56mhz: 13.56MHz (HF)

Supported Protocols

ISO/IEC 14443A, ISO/IEC 14443A/B, ISO/IEC 15693

Antenna Configuration

Integrated 13.56 MHz NFC Antenna / Optional LF and HF RFID Modules

Reading Distance

Built-in NFC: 1-3 cm / Optional LF RFID: 3-5 cm / Optional HF RFID: 3-5 cm

Tag Read Performance

Built-in NFC: 1-3 cm / Optional LF RFID: 3-5 cm / Optional HF RFID: 3-5 cm, depending on card or tag and operating conditions.

Connectivity & Integration

3 parameters

Communication Interface

WiFi, Bluetooth, 4G

Power Supply

Battery

Supported Card / Tag Types

ISO/IEC 14443A NFC Cards & Tags / Optional 125/134.2 kHz LF RFID / Optional ISO/IEC 14443A/B & ISO/IEC 15693 HF RFID

Mechanical & Environment

7 parameters

Dimensions

178 × 83 × 137 mm

Weight

Approx. 300 g

Material & Housing

Rugged handheld housing with Corning hardened glass touchscreen / 1.8 m operating drop tested / 0.5 m tumble tested for 1,000 cycles

IP Rating

IP65

Operating Temperature

-20°C to +60°C / 5-95% RH, non-condensing

Battery Life

3.7V / 10000mAh Non-Removable Li-Polymer Battery / Approx. 16 Hours Working Time / More Than 600 Hours Standby

Customization Service

Memory configuration / Barcode engine selection / Optional LF or HF RFID modules / Fingerprint recognition / Face recognition / Temperature measurement / SDK integration support / Project-specific configuration

Detailed datasheets and compliance documents are available on request for project evaluation.

Request project documentation

Product Information

Product Overview

The Industrial Android RFID & Barcode Handheld Terminal is a rugged pistol-grip mobile data collection device designed for warehouse scanning, express logistics, manufacturing traceability, asset management, retail inventory and field operations. Running Android 12 on an MTK6765 octa-core processor up to 2.3 GHz, the terminal combines a 5.0-inch touchscreen, dual-band Wi-Fi, Bluetooth 5.0 BLE, 4G LTE and BeiDou/GPS/GLONASS positioning. A 3.7V / 10000mAh non-removable lithium-polymer battery provides approximately 16 hours of operating time and more than 600 hours of standby time.

Built-in NFC supports ISO/IEC 14443A cards and tags with a typical reading distance of 1-3 cm. Optional configurations include 125/134.2 kHz LF RFID, 13.56 MHz HF RFID supporting ISO/IEC 14443A/B and ISO/IEC 15693, 1D/2D barcode scanning, fingerprint recognition, face recognition and temperature measurement. The rugged housing is rated IP65, supports a 1.8 m operating drop test and is specified for operation from -20°C to +60°C. Android SDK, API documentation, demo applications, installation packages and test tools are available on request for secondary development and project integration.

Selection Guide

Quick Selection Guide

A practical summary to help match this reader to the right application and installation conditions.

Best For

Warehouse scanning, express logistics, manufacturing traceability, asset management, retail inventory, identity verification and field data collection requiring barcode and short-range RFID identification.

Choose This When

Choose this terminal when your application requires Android 12, barcode scanning, built-in NFC and optional LF/HF RFID, together with 4G, dual-band Wi-Fi and Bluetooth 5.0 BLE in a rugged pistol-grip handheld device.

Not Ideal For

Not intended for long-range UHF RFID inventory, fixed RFID portals or applications requiring bulk RFID tag identification from several meters away.

Read Range & Installation

Built-in NFC reading distance is approximately 1-3 cm. Optional LF and HF RFID configurations typically provide approximately 3-5 cm identification, depending on the card or tag, antenna alignment and operating environment.

Compatibility

Android 12 handheld terminal with built-in ISO/IEC 14443A NFC, optional 125/134.2 kHz LF RFID and optional 13.56 MHz HF RFID supporting ISO/IEC 14443A/B and ISO/IEC 15693. Dual-band Wi-Fi, Bluetooth 5.0 BLE, 4G LTE and BeiDou/GPS/GLONASS positioning are supported.

OEM / ODM Support

Project-based configuration and product adaptation

SDK & Integration Support

Interfaces, protocols and software integration support

Factory Quality Control

Production testing and outgoing inspection

Global Project Support

Export support for international projects and partners
