20+ Years RFID Manufacturing Experience

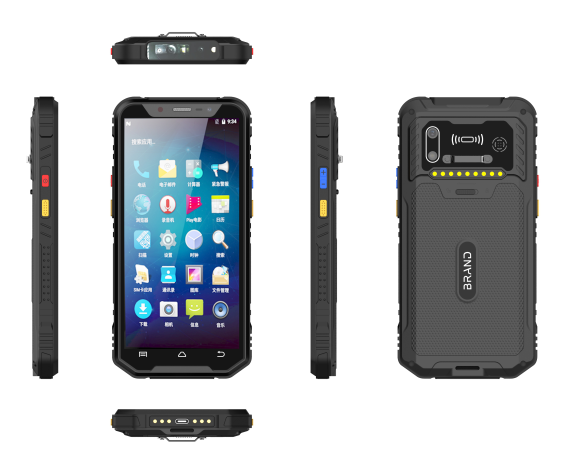

Industrial Android NFC Handheld Terminal with Optional Barcode Scanner

Handheld RFID Terminal 13.56mhz: 13.56MHz (HF) WiFi Bluetooth

Typical Read Range

NFC: 1-3 cm (card, antenna alignment and environment dependent)

Typical Applications

Warehouse Operations / Logistics / Asset Management / Mobile Data Collection / Access Control / Retail Operations

Request a Quote WhatsApp

Product Specifications

Technical Specifications

Core parameters for reader selection, integration planning and installation review.

RF & Reading

6 parameters

Reader Type

Handheld RFID Terminal

Frequency

13.56mhz: 13.56MHz (HF)

Supported Protocols

ISO/IEC 14443A

Antenna Configuration

Integrated 13.56 MHz NFC Antenna

Reading Distance

NFC: 1-3 cm (card, antenna alignment and environment dependent)

Tag Read Performance

Short-range NFC identification with 1-3 cm typical read distance and ISO/IEC 14443A support.

Connectivity & Integration

3 parameters

Communication Interface

WiFi, Bluetooth, 4G

Power Supply

Battery

Supported Card / Tag Types

ISO/IEC 14443A NFC Cards & Tags (including compatible MIFARE / NTAG products)

Mechanical & Environment

6 parameters

Dimensions

170 × 83 × 15.8 mm

Weight

Approx. 282 g

Material & Housing

Rugged handheld housing with Corning Gorilla Glass 3 touchscreen / 1.5 m operating drop tested

Operating Temperature

-20°C to +55°C / Up to 95% RH, non-condensing

Battery Life

3.7V / 5100mAh Removable Li-Polymer Battery / Approx. 8 Hours Working Time / More Than 300 Hours Standby

Customization Service

Memory configuration / Optional barcode engine selection / Device color options / SDK integration support / Project-specific software and hardware configuration

Detailed datasheets and compliance documents are available on request for project evaluation.

Request project documentation

Product Information

Product Overview

The Industrial Android NFC Handheld Terminal is a rugged mobile data collection device based on Android 12, with integrated 13.56 MHz NFC, dual-band Wi-Fi, Bluetooth 5.0 BLE, 4G LTE, and BeiDou/GPS/GLONASS positioning. It uses an MTK6765 octa-core processor running at up to 2.0 GHz, with 3GB + 32GB memory and an optional 4GB + 64GB configuration. A 5.99-inch 1440 × 720 multi-touch display with Corning Gorilla Glass 3 supports everyday mobile operation, while the removable 3.7V / 5100mAh battery provides approximately 8 hours of working time and more than 300 hours of standby time.

Built-in NFC supports ISO/IEC 14443A compatible cards and tags with a typical reading distance of 1-3 cm. Optional 1D/2D barcode engines are available from Honeywell, Zebra and NLS for warehouse, logistics, asset management and field data collection. The terminal is specified for a 1.5 m operating drop and an operating temperature range of -20°C to +55°C. Android SDK, API documentation, demo applications and test tools are available on request for secondary development and project integration.

Selection Guide

Quick Selection Guide

A practical summary to help match this reader to the right application and installation conditions.

Best For

Mobile NFC identification, optional barcode data collection, warehouse operations, logistics, asset management, access control and field data collection.

Choose This When

Choose this terminal when your application requires Android 12, built-in NFC identification, dual-band Wi-Fi, Bluetooth 5.0 BLE and 4G LTE, with optional 1D/2D barcode scanning.

Not Ideal For

Not intended for long-range UHF RFID inventory, fixed RFID portals, multi-antenna reading systems or applications requiring bulk UHF tag identification from several meters away.

Read Range & Installation

Built-in NFC reading distance is approximately 1-3 cm and depends on the card or tag, antenna alignment and operating environment. Optional barcode performance depends on the selected scan engine, barcode quality and scanning conditions.

Compatibility

Android 12 handheld terminal with built-in ISO/IEC 14443A NFC, dual-band Wi-Fi, Bluetooth 5.0 BLE, 4G LTE and BeiDou/GPS/GLONASS positioning. Optional 1D/2D barcode engines are available for mobile data collection.

OEM / ODM Support

Project-based configuration and product adaptation

SDK & Integration Support

Interfaces, protocols and software integration support

Factory Quality Control

Production testing and outgoing inspection

Global Project Support

Export support for international projects and partners
