20+ Years RFID Manufacturing Experience

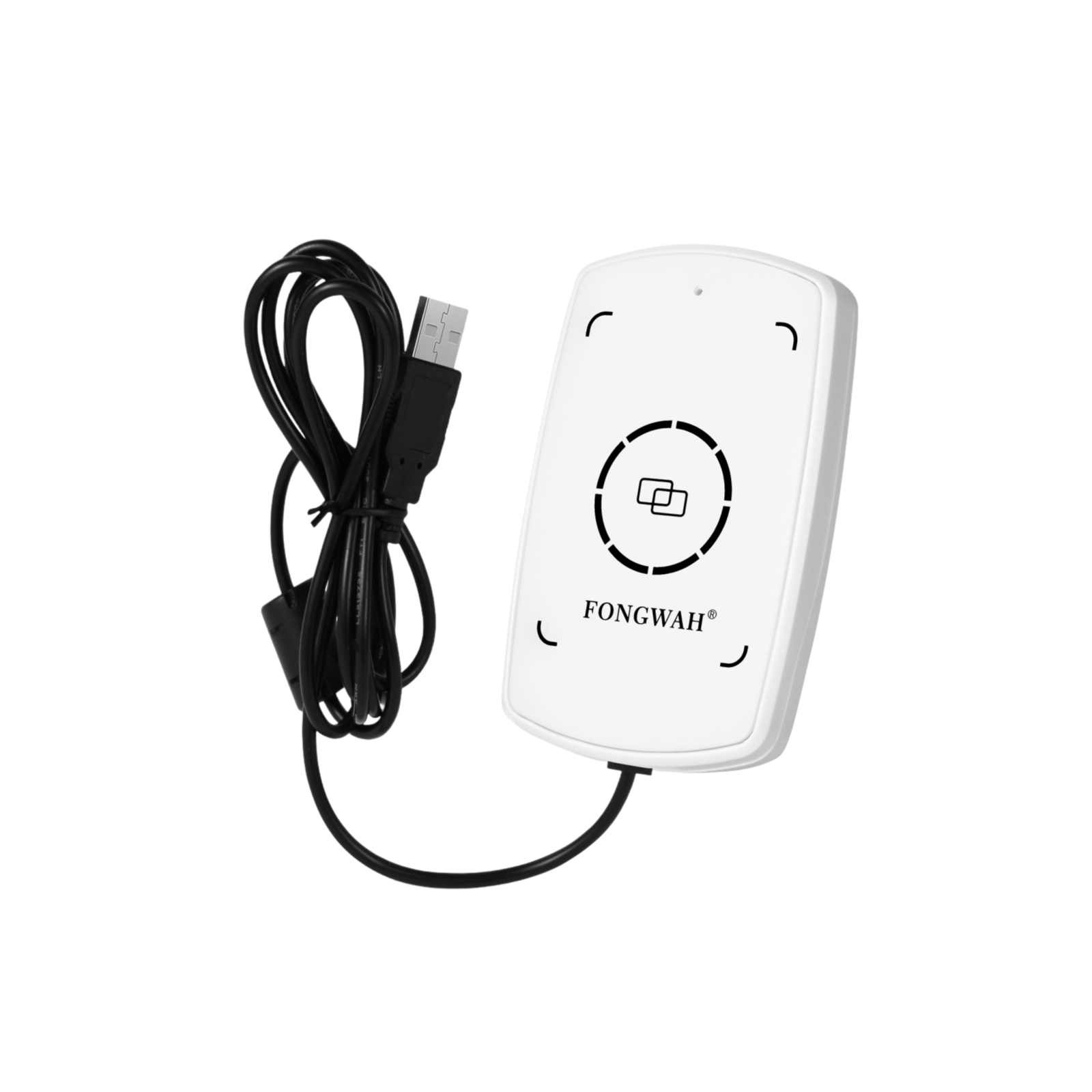

UHF RFID Reader U1-CU-71

Desktop RFID Reader / Writer 860-960mhz: 860-960MHz (UHF) USB

Typical Read Range

Up to 50 cm (depending on tag type, antenna setup and operating environment)

Typical Applications

Desktop RFID Applications / Inventory Management / Retail Management / Access Control / RFID Development Testing

Request a Quote WhatsApp

Developer Resources

Public SDK package for software integration and secondary development.

Get Unified SDK Package

Product Specifications

Technical Specifications

Core parameters for reader selection, integration planning and installation review.

RF & Reading

7 parameters

Reader Type

Desktop RFID Reader / Writer

Frequency

860-960mhz: 860-960MHz (UHF)

Supported Protocols

EPC C1G2 (ISO 18000-6C)

RF Output Power

0 to 20dBm

Antenna Configuration

Integrated antenna design for short-range desktop UHF RFID reading and writing applications.

Reading Distance

Up to 50 cm (depending on tag type, antenna setup and operating environment)

Tag Read Performance

Short-range UHF RFID reading and writing performance with adjustable RF output power. Actual performance depends on tag type, tag placement and operating environment.

Connectivity & Integration

3 parameters

Communication Interface

USB

Power Supply

5V USB

Supported Card / Tag Types

EPC Class 1 Gen 2 / ISO 18000-6C Compatible UHF Tags & Inlays

Mechanical & Environment

3 parameters

Dimensions

110*67*17mm

Weight

180g

Customization Service

OEM customization is available, including software integration, communication configuration and project-specific RFID application requirements.

Detailed datasheets and compliance documents are available on request for project evaluation.

Request project documentation

Product Information

Product Overview

The UHF RFID Reader U1-CU-71 is a compact desktop UHF RFID reader/writer designed for short-range tag identification, data collection and RFID application development. The reader supports USB connection with computers and embedded systems, providing a convenient solution for inventory management, retail applications, access control and other desktop RFID scenarios.

The reader supports EPC Class 1 Gen 2 / ISO 18000-6C UHF RFID protocol and provides reliable reading and writing performance for compatible UHF tags and inlays. With adjustable RF output power and a reading distance of up to approximately 50 cm, the U1-CU-71 is suitable for applications requiring controlled-range RFID identification.

The U1-CU-71 supports plug-and-play USB communication and provides SDK resources, programming examples and development documentation for system integration and secondary development. Configuration options, software integration and project-specific customization support are available for OEM applications.

Selection Guide

Quick Selection Guide

A practical summary to help match this reader to the right application and installation conditions.

Best For

Desktop RFID reading and writing applications, inventory management, retail operations and RFID software development testing.

Choose This When

Choose this model when you need a compact USB-connected UHF RFID reader/writer with controlled reading distance and easy software integration.

Not Ideal For

Not ideal for long-range RFID portals, large-area warehouse identification or multi-antenna industrial deployment.

Read Range & Installation

The reading distance can reach up to approximately 50 cm under suitable conditions. Actual performance depends on tag sensitivity, tag placement, antenna design and surrounding environment.

Compatibility

Compatible with EPC Class 1 Gen 2 / ISO 18000-6C UHF RFID tags and inlays for desktop reading and writing applications.

OEM / ODM Support

Project-based configuration and product adaptation

SDK & Integration Support

Interfaces, protocols and software integration support

Factory Quality Control

Production testing and outgoing inspection

Global Project Support

Export support for international projects and partners
