Fongwah Consumables Division

Standard 15mm PPS HF RFID Laundry Tag (ICODE SLIX2, 2.5mm Thickness, IP68)

Model: FW-PPS-WT-1525

Frequency Band

High Frequency (HF) 13.56MHz

Chip Type

NXP ICODE SLIX2

Request Quote Request Custom Specs

CLICK TO ZOOM

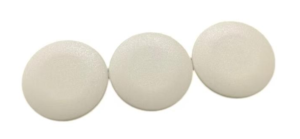

Standard 15mm PPS HF RFID Laundry Tag (ICODE SLIX2, 2.5mm Thickness, IP68)

Product Description

The Standard 15mm PPS HF RFID Laundry Tag is a heavy-duty, ultra-slim transponder precision-engineered for commercial textile tracking, industrial linen laundering, and garment asset management. Featuring a highly standardized commercial profile of 15mm in diameter and a 2.5mm slim thickness, this white coin-style tag allows for effortless embedding or sewing directly into uniform hems, bedsheets, and hotel towels without causing wearer discomfort.

Molded from high-grade PPS (Polyphenylene Sulfide) polymer, it ensures maximum durability against high-pressure water extraction, chemical detergents, and thermal sterilization cycles up to 200°C. Empowered by the advanced NXP ICODE SLIX2 chip (High Frequency 13.56MHz), the tag delivers an optimized read range of over 3 cm in non-metal environments, offering exceptional multi-tag anti-collision capabilities for fast, accurate bulk scanning.

Technical Specifications

Product Model FW-PPS-WT-1525

RFID Chip Type NXP ICODE SLIX2

Frequency Band High Frequency (HF) 13.56MHz

Dimensions Diameter 15.0mm * Thickness 2.5mm

Material & Craft White PPS Plastic / Standard Disc Design

IP Protection Rating IP68 Waterproof, Chemical & High-Temperature Resistant

Memory Capacity 2560 bits (2500 bits user memory available)

Evaluated Read Range > 3 cm (Reader and environment dependent)

Customization Options Laser engraved UID/Serial number, Custom laser logo, Thread holes available

Deployment Suitability Asset Tracking & Warehousing, Industrial Laundry

Request Custom Arrays for Standard 15mm PPS HF RFID Laundry Tag (ICODE SLIX2, 2.5mm Thickness, IP68)?

Our engineering division will review your target applications and deployment environment parameters to compile an optimized sourcing proposal within 12-24 business hours.

Name *

Company Name *

Business Email *

Phone / WhatsApp

Application Specifications & Quantity Target *
